Port and marine terminal facilities put steel structures through one of the more demanding combinations of conditions in industrial construction: severe corrosion exposure from salt spray and humidity, heavy point loads from cargo-handling equipment, and — for transit sheds and warehousing — clear spans wide enough to accommodate container or bulk cargo movement underneath.
1. Corrosion protection at the top end of the exposure scale
A structure directly on a port or terminal typically sits at the most severe end of standard corrosivity categories, closer to direct marine spray than a general coastal building. As covered in our guide to corrosion-resistant steel structures for harsh environments, this usually calls for a duplex coating system — galvanizing plus a compatible paint topcoat — rather than a single coating layer, confirmed against the specific terminal’s exposure rather than a generic marine specification.
1.1 Detailing to avoid water-trapping at a wet, salt-laden site
Port environments combine constant humidity with salt deposition, which makes water-trapping connection details — upward-facing channels, unsealed laps — particularly damaging; these get resolved in the connection design stage, not left for the coating to compensate for.
1.2 Structures near cargo-handling equipment

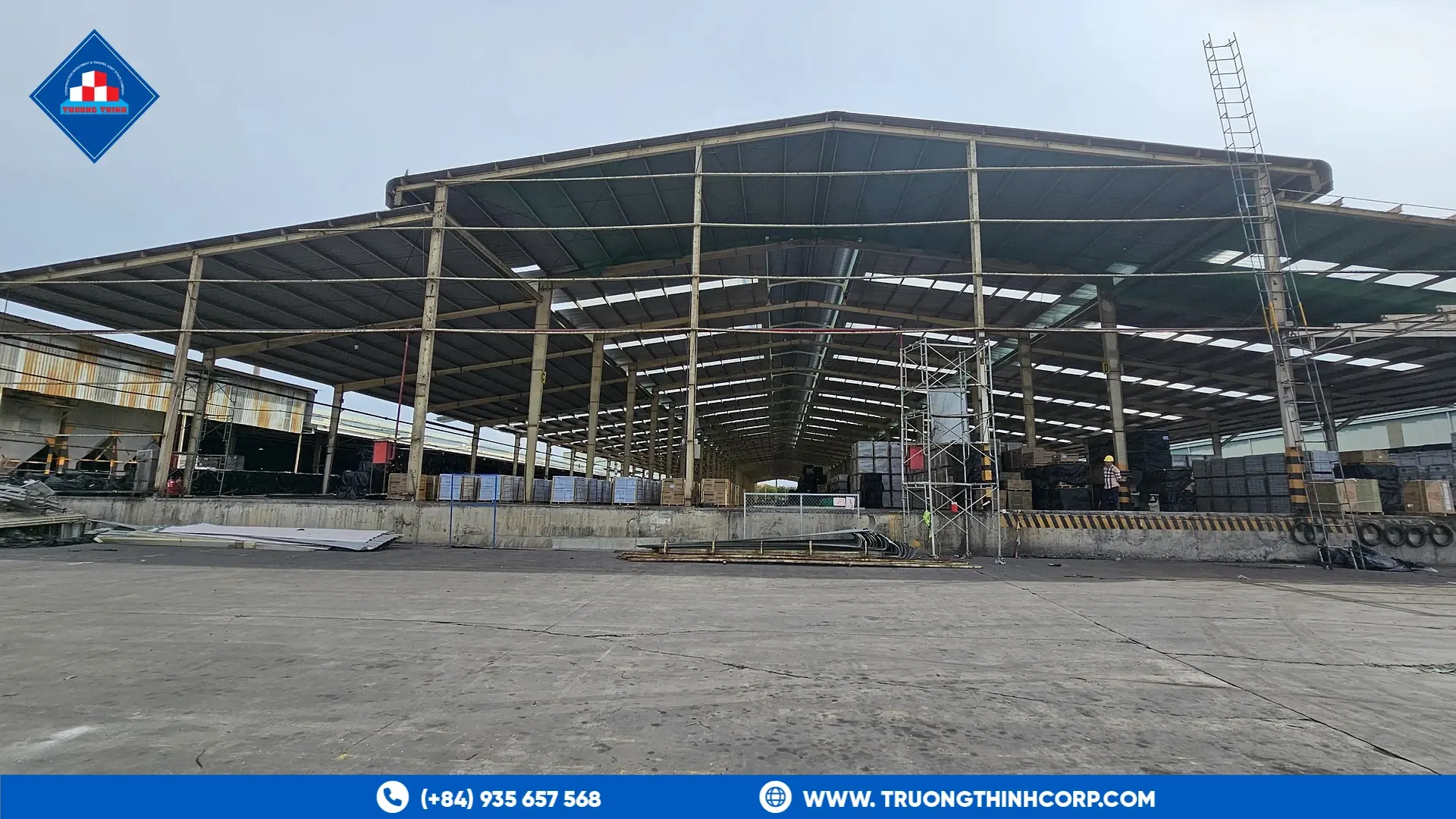

Warehousing and transit sheds near gantry cranes, reach stackers, or forklifts need clear internal heights and column placement coordinated with the equipment’s operating envelope and lift heights, which is confirmed with the terminal operator before the structural grid is finalized.
2. What to confirm before fabrication for a port project
| Item | Why it matters |
|---|---|
| Exposure category and coating system | Confirmed against the terminal’s actual marine exposure, not a generic export coating default |
| Clear span and internal height | Set by cargo-handling equipment envelope and container or bulk-cargo movement requirements |
| Wind loading | Coastal and open-water sites often carry higher design wind speeds than an inland industrial site |
| Export logistics for the project itself | Steel fabricated off-site needs its own shipping plan to reach the port project location |

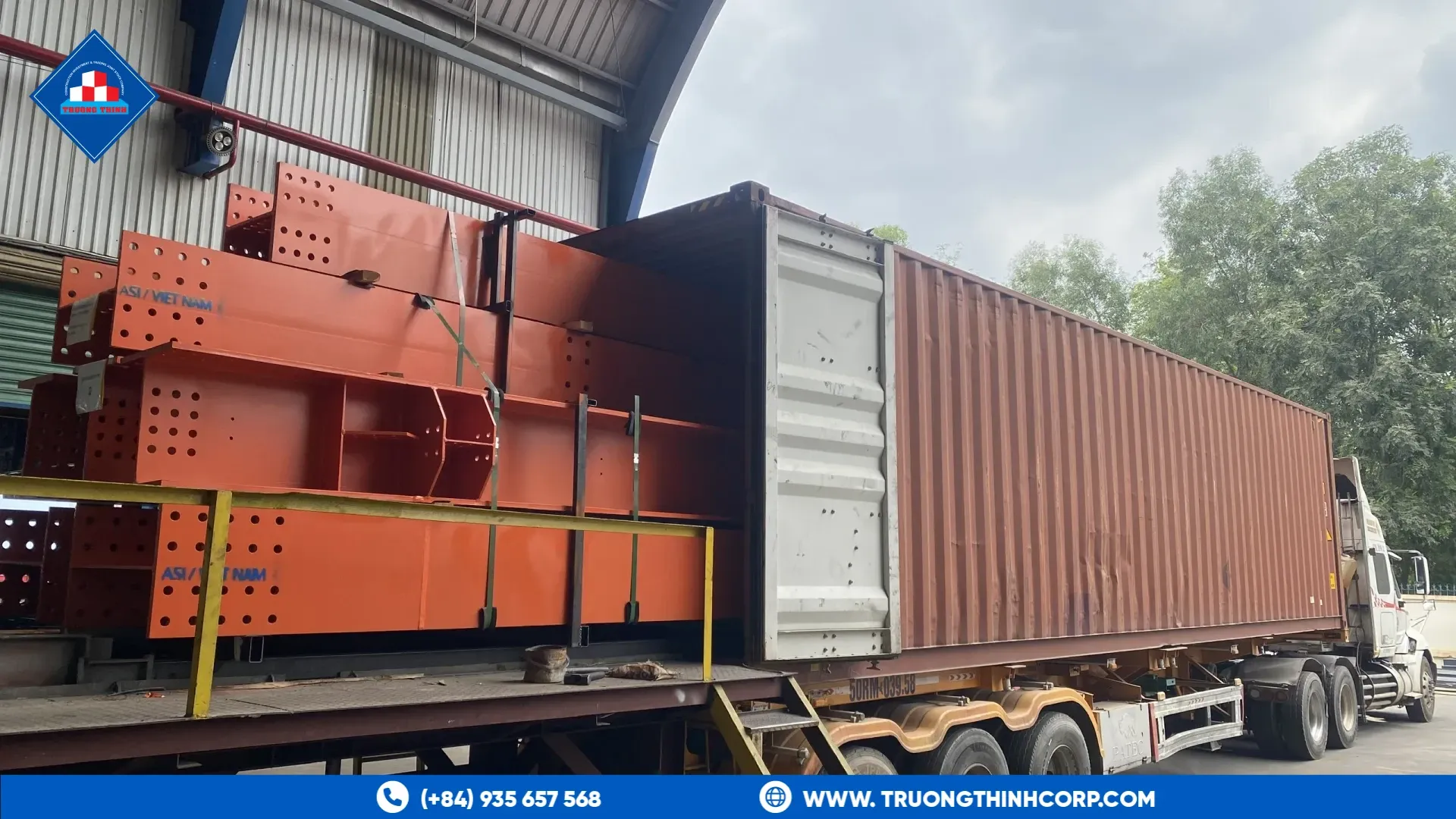

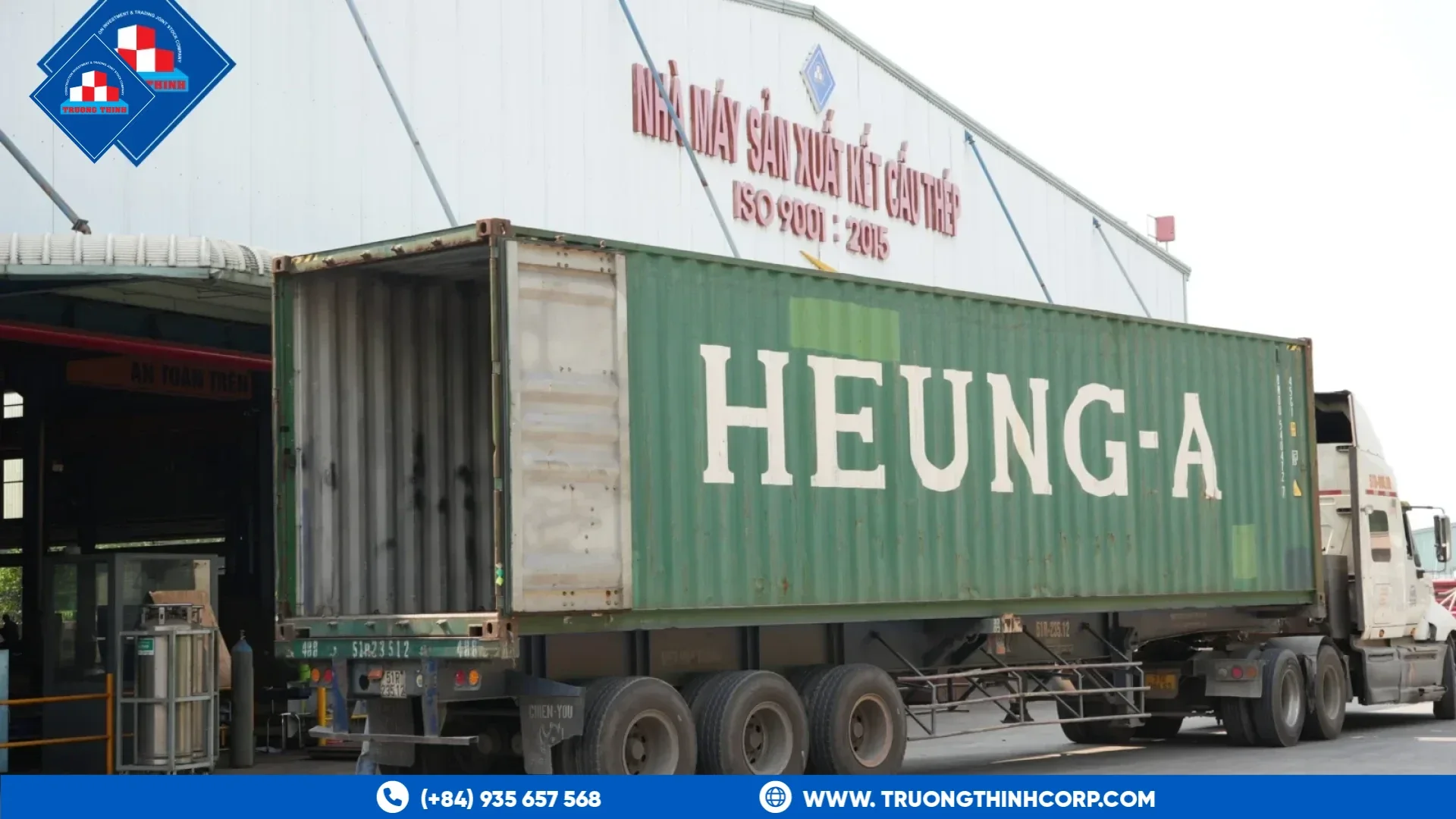

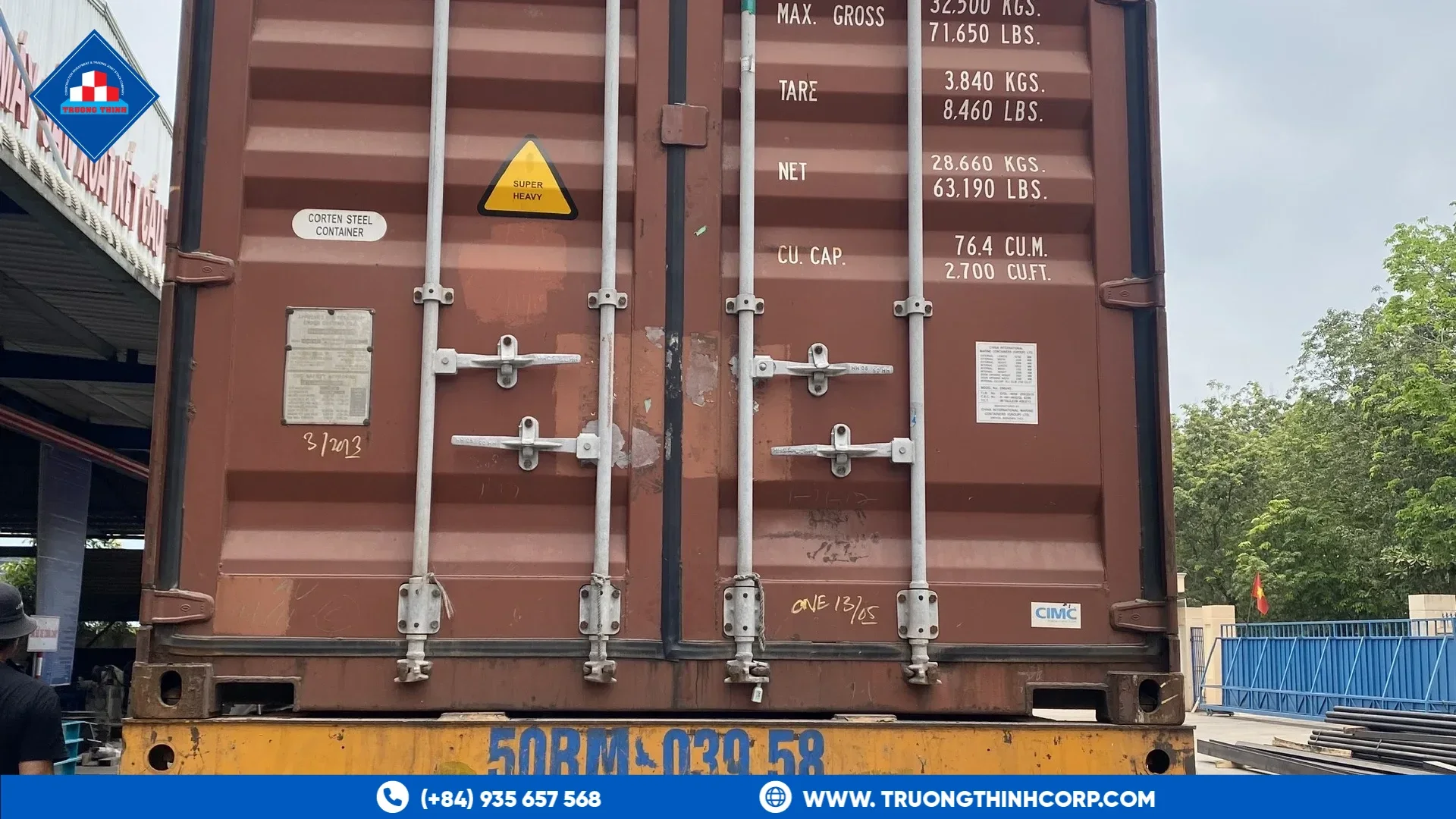

3. Fabrication and export logistics experience that applies directly
Because port and marine terminal projects are inherently tied to shipping and logistics, a fabricator’s own export experience — packaging, documentation, and container or break-bulk freight — carries over directly into delivering steel structures to port sites.
Truong Thinh Corp fabricates and exports structural steel with full packing and documentation support, the same logistics discipline that applies to delivering steel structures for port and marine terminal facilities.
Frequently Asked Questions
Why does a port structure need a different coating specification than a standard coastal building?
A structure directly on a port or terminal typically sits at the most severe end of standard corrosivity categories, closer to direct marine spray, which usually calls for a duplex coating system rather than a single coating layer.
What sets the clear span and internal height of a port warehouse or transit shed?
The cargo-handling equipment’s operating envelope and lift heights, along with container or bulk-cargo movement requirements, confirmed with the terminal operator before the structural grid is finalized.
Does export logistics experience matter when fabricating steel for a port project?
Yes u2014 steel fabricated off-site needs its own shipping plan to reach the port project location, so a fabricator’s own packaging, documentation, and freight experience carries over directly.
