Manufacturer and Fabricator of Structural Steel I-beam

With over 18 years of experience in the design, fabrication, and erection of steel structures, Truong Thinh Corp is one of Vietnam’s pioneers in I-beam manufacturing. Each year, the company supplies tens of thousands of tons of structural steel for industrial plants, factories, warehouses, and commercial buildings both domestically and internationally. The I-beam is considered a core product, engineered for high load-bearing capacity, superior durability, and reliable delivery schedules that meet the most demanding technical standards of modern construction.

1. Types of I-beams supplied by Truong Thinh Corp

Truong Thinh Corp focuses on developing I-beam product lines suitable for a wide range of industrial applications, from manufacturing facilities to large-scale infrastructure projects. Among these, fabricated welded I-beams are the most popular due to their design flexibility and cost efficiency.

1.1 Fabricated welded I-beam

Fabricated welded I-beams are produced from hot-rolled steel plates that are cut, welded, and shaped automatically according to design drawings. Their greatest advantage lies in customizable dimensions for each project, helping reduce material costs for large-span structures; for projects that require a broader category overview or alternative profiles, see our factory’s full range of steel beam solutions.

Production is carried out using automatic gantry welding systems that ensure deep penetration welds, uniform seams, and excellent structural stability. This beam type is particularly suitable for heavy-load structures such as pre-engineered steel buildings, industrial plants, logistics warehouses, and bridge frames. With advanced facilities and proactive production capabilities, Truong Thinh Corp is able to meet tight project schedules without compromising quality.

1.2 Comparison between I-beam and H-beam

Criteria	I-Beam	H-Beam
Cross-section geometry	Taller web, narrower flange	Web and flange nearly equal
Bending resistance	Better under vertical loads	Better for multidirectional loads
Application	Main frames, floor beams, bridge girders	Columns, braces, multidirectional load frames
Weight	Lighter by approximately 10–15%	Heavier, higher material usage
Cost	More economical for large structures	Higher due to increased steel volume

2. I-Beam production process at Truong Thinh factory

At Truong Thinh’s steel structure plant, the entire I-beam production process is conducted in a closed system—from design and fabrication to inspection and finishing—following ISO 9001:2015 standards for quality control and precision.

2.1 Stage 1 – Design

The design phase forms the foundation of I-beam production. Truong Thinh uses Tekla Structures and SAP2000 software to simulate stress and deformation, determining optimal dimensions for load-bearing performance. Each drawing is cross-checked between the design and production teams using internal QA checklists to ensure accuracy, manufacturability, and safety.

2.2 Stage 2 – CNC cutting and automatic welding

After design approval, steel plates are processed through CNC plasma and oxy-gas cutting machines, ensuring high precision and minimal material waste. Welding is performed using automatic gantry welding systems, producing strong and consistent welds that comply with international standards. All input materials are verified with Certificates of Origin (CO) and Certificates of Quality (CQ) before entering production.

2.3 Stage 3 – Surface finishing and protection

Once structural assembly is complete, beams are shot-blasted to Sa 2.5 surface cleanliness to remove rust and contaminants. Depending on project requirements, the I-beam surface is coated with epoxy primer and polyurethane paint or hot dip galvanized for enhanced corrosion resistance. Each coating layer is thickness-tested and documented for long-term traceability.

3. I-Beam production capacity at Truong Thinh Corp

Production capacity is the key factor that determines the ability to handle large and complex projects. Truong Thinh Corp operates modern manufacturing facilities and a team of experienced engineers capable of meeting both high technical requirements and fast construction schedules.

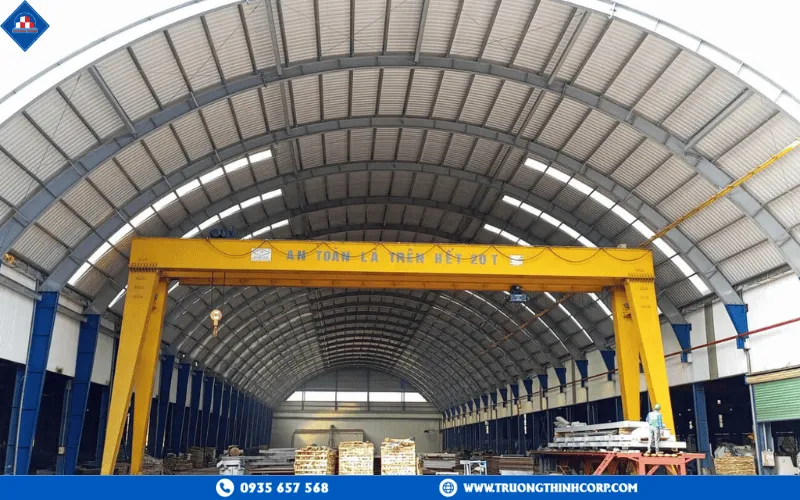

3.1 Facilities and technology

The Truong Thinh steel structure factory, located in Vinh Tan, Tan Uyen, Binh Duong, covers over 25,000 m² and includes fabrication workshops, material storage areas, and quality control zones. Production capacity reaches 1,200 tons per month and can scale up to 1,500 tons for large projects.

Modern equipment includes CNC cutting machines, 3-in-1 automatic gantry welders, CNC drilling and punching machines, beam straightening units, and enclosed blasting and painting booths. Each process is monitored by an automated QC/QA system to ensure dimensional accuracy.

3.2 Engineering team and quality control

With over 680 engineers and skilled workers, Truong Thinh Corp’s personnel are certified in welding supervision and inspection under international standards. Multi-level quality checks—from raw material to welding and finishing—ensure that every beam meets project specifications before delivery.

3.3 Certifications and standards

Truong Thinh’s I-beams are produced according to standards such as JIS G3101, ASTM A36, EN 10025, and AWS D1.1, within the ISO 9001:2015 quality management framework. Each batch includes CO/CQ certificates, mechanical property reports, and full production documentation for transparency and traceability.

4. Truong Thinh I-beam technical standards

Technical standards are the key factor that ensure Truong Thinh I beams maintain strong load bearing capacity and long service life even in harsh environments. Every detail, from material selection and dimensions to protective coating, is carefully engineered to meet the practical requirements of each project.

4.1 Material and grades

Truong Thinh I-beams are fabricated from high-quality structural steels including SS400, Q235, Q345, and ASTM A36/A572, with yield strength ranging from 250 to 355 MPa and tensile strength from 400 to 540 MPa. All welding processes conform to AWS D1.1 and EN ISO 3834-2, ensuring durable and consistent welds under heavy loading conditions.

4.2 Dimensions and tolerances

Specification	Standard Range
Web height	150 – 1,500 mm
Web thickness	4 – 16 mm
Flange width	150 – 500 mm
Flange thickness	5 – 20 mm
Beam length	6 – 15 m
Dimensional tolerance	±2 mm

Custom designs can be manufactured according to client drawings. For large-span or high-load projects, Truong Thinh provides fully customized beams tailored to specific technical requirements.

4.3 Load capacity

All I-beams are modeled and analyzed using simulation software to ensure axial load and bending strength exceed standard limits. For projects requiring higher multidirectional load capacity, Truong Thinh also offers advanced H-beam solutions engineered for superior bending and torsional performance. Deflection is controlled below L/250, meeting industrial building standards, with a safety factor above 1.6 for both static and dynamic loads.

4.4 Surface treatment

Depending on environmental conditions, beams are coated with epoxy primer and polyurethane (90–120 μm) or hot dip galvanized (70–100 μm) for corrosion protection. These treatments extend product lifespan to 15–25 years, even in humid or corrosive environments.

5. Featured projects

Real-world projects serve as the clearest proof of Truong Thinh Corp’s quality and construction capability. Many major projects, both domestic and international, have chosen the company’s I-beams for heavy-load structures that demand high technical precision and tight schedules.

5.1 Project: Primary Irrigation Channel and Service Road – Dau Tieng Irrigation System (Tay Ninh)

• Location: Dau Tieng Reservoir, Tay Ninh Province
• Year: 2014
• Scope: 5 contract packages
• Work items: Concrete lining of earth channels and road construction

In this key irrigation project of the Southeast region, Truong Thinh Corp executed five packages involving channel lining, road base reinforcement, and embankment stabilization—enhancing irrigation efficiency and long-term infrastructure durability.

5.2 Project: Core Sample Storage Warehouse – Vietnam Petroleum Institute

• Location: District 9, Ho Chi Minh City
• Year: 2016
• Scale: 1,000 m²
• Scope: Warehouse construction

As the main contractor, Truong Thinh built a specialized storage facility for geological core samples, designed to meet strict requirements for structure, ventilation, and temperature control. The project was completed on schedule, ensuring safe long-term preservation of national petroleum research data.

6. Why choose Truong Thinh I-beam

Truong Thinh Corp is trusted by investors and contractors for its product quality, professionalism, and project-wide commitment. All I-beams are produced from certified materials under ISO-compliant fabrication and thoroughly inspected before dispatch. With large-scale capacity and a team of expert engineers, the company can handle multiple major projects simultaneously while ensuring high quality and on-time delivery. Direct in-house production also helps optimize costs by eliminating intermediaries. All products come with a 12-month warranty and comprehensive technical support, ensuring reliability throughout their service life.

7. Our 5-Step collaboration process

To ensure precision, synchronization, and efficiency in every steel I-beam project, Truong Thinh Corp follows a five-step integrated workflow connecting design, production, inspection, erection, and client coordination under ISO 9001:2015 standards:

Requirement analysis and technical consultation

Engineers assess loads, spans, and foundation conditions, then propose optimized I-beam solutions using 3D simulations with SAP2000 and Tekla Structures. Clients receive detailed cost, production, and delivery schedules for accurate planning.

Site survey and final design

Field engineers survey elevation, soil, and load data, then model them in Tekla Structures and AutoCAD for strength validation. Drawings are reviewed with QC checklists to ensure dimensional accuracy within ±1 mm.

Fabrication at Truong Thinh factory

Beams are fabricated from SS400, Q235, Q345, ASTM A36/A572 steel with full CO and CQ documentation. CNC cutting, automatic gantry welding, and surface finishing (epoxy coating 2–3 layers, 100–200 μm, or hot dip galvanizing 80–100 μm) ensure precision and durability.

Transport, erection, and handover

Finished beams are moisture-protected and delivered using certified heavy-duty trucks and cranes. Truong Thinh’s on-site team supervises installation to ensure correct alignment and load direction. Final inspection and load testing follow ISO 9001:2015 procedures.

Warranty and after-sales support

All I-beams are covered by a 12-month warranty including maintenance and coating repair services. The technical team provides response within 24 working hours, reflecting Truong Thinh’s dedication to long-term reliability and safety.

8. Technical services and support

To ensure reliable performance in real-world applications, Truong Thinh Corp provides comprehensive technical services—from design consultation to transportation and maintenance. Each product is securely packaged and moisture-protected during delivery. Customers enjoy a 12-month warranty covering technical support, repainting, and replacement of components due to manufacturing defects.

With over 18 years of experience, advanced production facilities, and a team of skilled engineers, Truong Thinh Corp is recognized as one of Vietnam’s leading steel structure manufacturers, specializing in I-beam production for industrial and commercial projects. We collaborate closely with clients at every stage, from design and fabrication to erection and after-sales service, ensuring each project meets the highest standards of quality, schedule, and cost efficiency. Contact us to discuss your project or request a detailed quotation.
